Especificaciones
| Displacement @50Hz Max | 0.280 |
| Displacement @60Hz Max | 0.338 |
| Presión final | -30000.00 |
| Power Total Rated @50Hz | 18500.00 |
| Power Total Rated @60Hz | 22000.00 |
| Noise / Sound Level | 85.00 db(A) 85.00 db(A) |

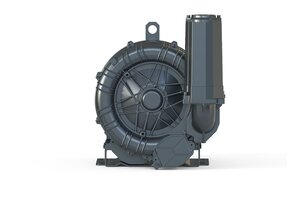

DBDt 1010-300 Side Channel Blower, Two stage, 18.5 kW (@50 Hz)
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 3002615495 | |
| 3002615496 |
Side Channel Blowers
Introducing the Atlas Copco DB series Side Channel Blowers - a tested and reliable technology for rough vacuum level and low pressure as well, suitable for industrial application in the most efficient way possible. Available in single and double-stage variants the DB series do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. They are designed to be robust, clean, compact, and silent suited for rough industrial applications with high efficiency. The modular construction of DB side channel blowers ensures efficient performance with minimal energy consumption.
DBDt
DBDt - Twin impellers and double stage
Double stage and twin impellers allow to manage high flow rates and higher vacuum levels. They are the most complex models to match demanding applications.
The double stage variant increases both the pressure difference and the flow rate of the blower
General Product Information
| Longitud de cota | 1.01 |
| Dimensión de altura | 0.813 |
| Dimensión de anchura | 0.598 |
| Brida de entrada de conexión | 4" BSPP (G) Hembra |
| Noise / Sound Level |
85.00
db(A)
85.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Peso | 201.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange | 4" BSPP (G) Hembra |
| Power Supply Voltage |
3Ph 400/690V 50Hz
3Ph 460/795V 60Hz |
Performance Data
| Pressure Backing Max | 30000.00 |
| Presión final | -30000.00 |
| Velocidad de rotación nominal | 49.17 |
| Power Total Rated @50Hz | 18500.00 |
| Power Total Rated @60Hz | 22000.00 |
| Nominal Rotational Speed 50Hz | 49.17 |
| Nominal Rotational Speed 60Hz | 59.17 |
| Pressure Differential Max @50Hz | 30000.00 |
| Pressure Differential Max @60Hz | 22500.00 |
| Displacement @50Hz Max | 0.280 |
| Displacement @60Hz Max | 0.338 |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Rough Vacuum Pump |
| Clasificación Bomba seca o húmeda | Bomba seca |
| Clasificación Rango de presión del producto |
Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar |
Variants
| Tipo de impulsor | Doble impulsor |
| Etapas | Dos etapas |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitud máxima | 1000.00 |
| Temperatura máx. del gas de entrada | 40.00 |
| Temperatura máx. del agua de refrigeración | 20.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | -15.00 |
