Especificaciones
| Displacement @50Hz Max | 0.194 |
| Displacement @60Hz Max | 0.233 |
| Power Total Rated @50Hz | 15000.00 |
| Power Total Rated @60Hz | 18500.00 |
| Noise / Sound Level | 72.00 db(A) 72.00 db(A) |

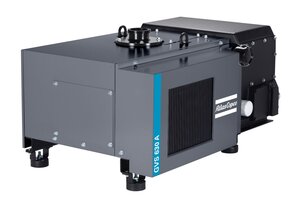

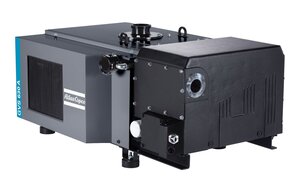

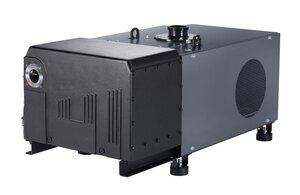

GVS 630A Single-Stage Rotary Vane Vacuum Pump, 15 kW (@50 Hz), 0.2 mbar(a), Air Cooling
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte | Power Supply Voltage | Homologación eléctrica | Filtro de aspiración |
|---|---|---|---|---|
| 3002615039 | 3Ph 575V 60Hz | - | - | |
| 8153316180 | 3F 200-230/380-400V 50Hz | Mundo | sin filtro de entrada | |
| 8153316198 | 3Ph 208-230/460V 60Hz, 400V 50Hz | US | sin filtro de entrada | |
| 8153316909 | 3Ph 220-240, 380-415/460V 50/60Hz | Europa | sin filtro de entrada |
GVS 630A
Providing highly efficient vacuum pumping performance, the GVS 16-630 A series is ideal for critical applications in packaging, woodworking, rubber, plastics, electronics, paper and printing, material handling, and other exacting industries. Moreover, with 11 models offering pumping speeds ranging
between 16 and 840 m3
Features and Benefits
- • Easy to install due to compact, space-saving design • High reliability through a rugged design and optimal oil retention at all operating pressures • Low maintenance and wear due to optimally selected shaft speeds • Low noise and vibration levels throughout the pressure range • Our coolest pump temperatures on the market allow a longer oil lifetime • Possible to run at any inlet pressure in continuous duty • High water-handling capability and long oil life
General Product Information
| Longitud de cota | 1567.00 |
| Dimensión de altura | 1068.00 |
| Dimensión de anchura | 909.00 |
| Brida de entrada de conexión |
DN 100
ASA/ANSI 4" |
| Noise / Sound Level |
72.00
db(A)
72.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Peso | 760.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange |
DN 100
ASA/ANSI 4" |
| Power Supply Voltage | 3F 200-230/380-400V 50Hz |
Lubricants
| Tipo de aceite predeterminado | V-Lube G |
Performance Data
| Pressure Backing Max | 1.163 × 10⁵ |
| Velocidad de rotación nominal | 50.00 |
| Power Total Rated | 15000.00 |
| Power Total Rated @50Hz | 15000.00 |
| Power Total Rated @60Hz | 18500.00 |
| Velocidad de bombeo, aire y nitrógeno 60 Hz | 0.210 |
| Velocidad de bombeo, aire y nitrógeno 50 Hz | 0.178 |
| Nominal Rotational Speed 50Hz | 50.00 |
| Nominal Rotational Speed 60Hz | 50.00 |
| Displacement @50Hz Max | 0.194 |
| Displacement @60Hz Max | 0.233 |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Rough Vacuum Pump |
| Clasificación Bomba seca o húmeda | Bomba húmeda |
| Clasificación Tecnología de bombas de vacío | Bombas de paletas rotativas de aceite de una etapa |
| Clasificación Rango de presión del producto | Rough Vacuum: 1000 mbar - 1 mbar |
Variants
| Homologación eléctrica | Mundo |
| Variante GVS | versión estándar |
| Versión de la unidad de potencia | con motor eléctrico |
| Filtro de aspiración | sin filtro de entrada |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitud máxima | 1000.00 |
| Capacidad de aceite máx. | 23.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
| Temperatura ambiente de almacenamiento mín. | -20.00 |
| Temperatura ambiente de almacenamiento máx. | 50.00 |
