Especificaciones
| Displacement @50Hz Max | 4.444 × 10⁻³ |
| Displacement @60Hz Max | 5.278 × 10⁻³ |
| Presión final | 12000.00 |
| Power Total Rated @50Hz | 750.00 |
| Power Total Rated @60Hz | 900.00 |
| Noise / Sound Level | 63.00 db(A) 63.00 db(A) |

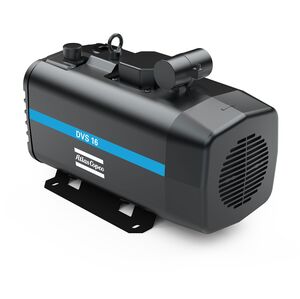

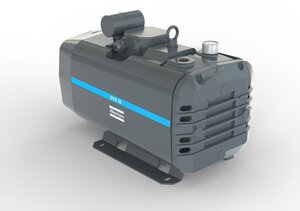

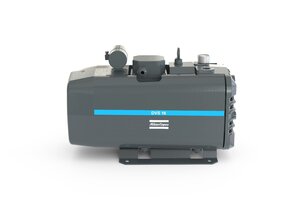

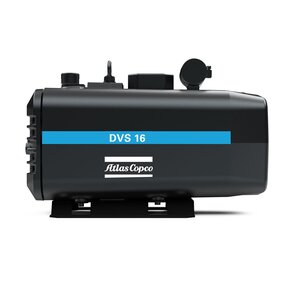

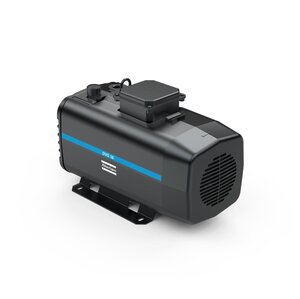

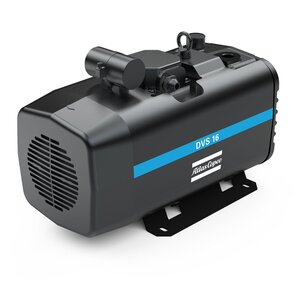

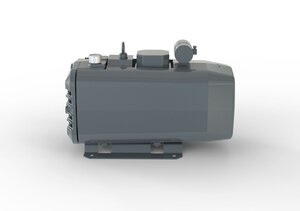

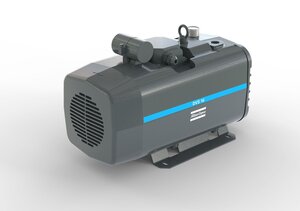

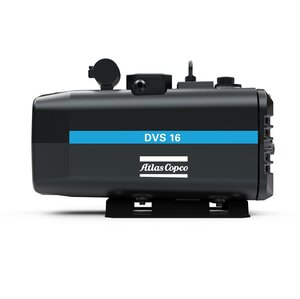

DVS 16 Dry Vane Vacuum Pump, 0.75 kW (@50 Hz), 120 mbar(a), Air Cooling
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte | Power Supply Voltage |
|---|---|---|
| 3002615663 | 1Ph 220-240V 50/60Hz | |
| 3002615677 | 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz | |
| 3002615683 | 3Ph 575V 60Hz |
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Longitud de cota | 0.412 |
| Dimensión de altura | 0.244 |
| Dimensión de anchura | 0.206 |
| Brida de entrada de conexión | 1/2" BSPP (G) Hembra |
| Noise / Sound Level |
63.00
db(A)
63.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Peso | 33.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange | 1/2" BSPP (G) Hembra |
| Power Supply Voltage | 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz |
Performance Data
| Pressure Backing Max | 2.000 × 10⁵ |
| Presión final | 12000.00 |
| Power Total Rated @50Hz | 750.00 |
| Power Total Rated @60Hz | 900.00 |
| Nominal Rotational Speed 50Hz | 1400.00 |
| Nominal Rotational Speed 60Hz | 1700.00 |
| Displacement @50Hz Max | 4.444 × 10⁻³ |
| Displacement @60Hz Max | 5.278 × 10⁻³ |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Rough Vacuum Pump |
| Clasificación Bomba seca o húmeda | Bomba seca |
| Clasificación Tecnología de bombas de vacío | Bomba de paletas seca |
| Clasificación Rango de presión del producto |
Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitud máxima | 1000.00 |
| Temperatura máx. del gas de entrada | 40.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperatura ambiente de almacenamiento mín. | -20.00 |
| Temperatura ambiente de almacenamiento máx. | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023696-DVS-PT-BR-Web.pdf - Brazilian Portuguese - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- Brochure_DZS-serie 6996023608-DVS_NL.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 16 1ph 3002615663.pdf - English - Dimensional Drawing
- DVS 16 3002615677.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996023693-DVS-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996023603-DVS Brochure-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996023604-DVS-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996023607-DVS-IT-Web.pdf - Italian - Sales Leaflet
- 6996023614-DVS-PL.pdf - Polish - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023605-DVS-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023638-DVS-TR-Web.pdf - Turkish - Sales Leaflet
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Vacuum gauge capsule dial -1 - 0 bar(e), | 8092300329 | - | |
| Vacuum gauge capsule dial 0 - 1000 mbar( | 8092300337 | - | |
| Vac. regulating valve VRV-B 1/4'' | 0017000019 | - | |
| Vac. filter IF-B 1/2'' (poliester) | 0017000007 | - | |
| Inlet hose fit. IHF (DVS 12-16) | 0017000027 | - | |
| Non-ret. valve NRV-U 1/2'' | 0017000032 | - | |
| Shock mounts (DVS 16-40) | 0017000001 | - | |
| Vac. filter IF-B 1/2'' (paper) | 0017000006 | - | |
| Relief valve PRV-16 | 0017000023 | - | |
| Pressure gauge 0-1000 mbar | 0017000091 | - | |
| Inlet hose fit. IHF (DVS 25) | 0017000028 | - |
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Filter Kit DVS 16, 25 | 3002628003 | - |
