Especificaciones
| Displacement @60Hz Max | 0.025 |
| Presión final | 15000.00 |
| Power Total Rated @60Hz | 3000.00 |
| Noise / Sound Level | 74.00 db(A) |

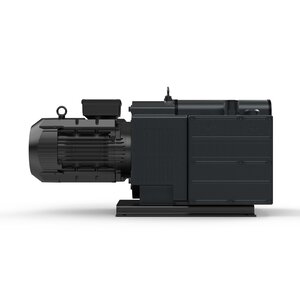

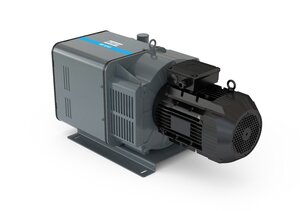

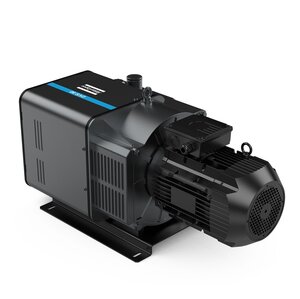

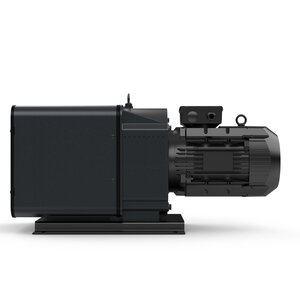

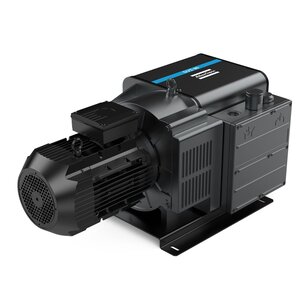

DVS 80 Dry Vane Vacuum Pump, 3 kW (@60 Hz), 150 mbar(a), Air Cooling
Añadido a tu carrito de compras
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte | Power Supply Voltage |
|---|---|---|
| 3002615678 | 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz | |
| 3002615684 | 3Ph 230/400V 50Hz | |
| 3002615690 | 3Ph 208-230/460V 60Hz |
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Longitud de cota | 0.722 |
| Dimensión de altura | 0.382 |
| Dimensión de anchura | 0.365 |
| Brida de entrada de conexión | 1" BSPP (G) Hembra |
| Noise / Sound Level | 74.00 db(A) |
| Power Supply Frequency | 60 Hz |
| Peso | 71.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange | 1" BSPP (G) Hembra |
| Power Supply Voltage | 3Ph 208-230/460V 60Hz |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Rough Vacuum Pump |
| Clasificación Bomba seca o húmeda | Bomba seca |
| Clasificación Tecnología de bombas de vacío | Bomba de paletas seca |
| Clasificación Rango de presión del producto | Rough Vacuum: 1000 mbar - 1 mbar |
Performance Data
| Presión final | 15000.00 |
| Power Total Rated @60Hz | 3000.00 |
| Nominal Rotational Speed 60Hz | 1700.00 |
| Displacement @60Hz Max | 0.025 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitud máxima | 1000.00 |
| Temperatura máx. del gas de entrada | 40.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperatura ambiente de almacenamiento mín. | -20.00 |
| Temperatura ambiente de almacenamiento máx. | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023696-DVS-PT-BR-Web.pdf - Brazilian Portuguese - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- Brochure_DZS-serie 6996023608-DVS_NL.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 80 3002615678.pdf - English - Dimensional Drawing
- DVS 80 Eu 3002615684.pdf - English - Dimensional Drawing
- DVS 80 US 3002615690.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996023693-DVS-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996023603-DVS Brochure-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996023604-DVS-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996023607-DVS-IT-Web.pdf - Italian - Sales Leaflet
- 6996023614-DVS-PL.pdf - Polish - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023605-DVS-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023638-DVS-TR-Web.pdf - Turkish - Sales Leaflet
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Vacuum gauge capsule dial -1 - 0 bar(e), | 8092300329 | - | |
| Vacuum gauge capsule dial 0 - 1000 mbar( | 8092300337 | - | |
| Inlet hose fit. IHF (DVS 40-80) | 0017000029 | - | |
| Shock mounts (DVS 60-140) | 0017000002 | - | |
| Vac. filter IF-B 1 1/4 (paper) | 0017000012 | - | |
| Vac. filter IF-B 1 1/4 (poliester) | 0017000013 | - | |
| Non-ret. valve NRV 1'' | 0017000036 | - |
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Filter Kit DVS 60, 80, 100, 140 | 3002628000 | - |
