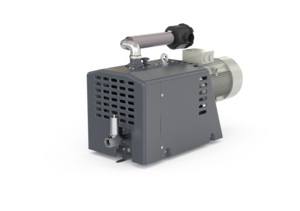

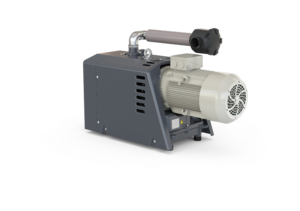

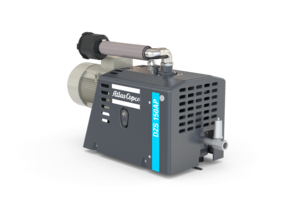

DZS 150AP
DZS 150AP
DZS 150AP
DZS 150AP

Especificaciones

Displacement @50Hz Max 8.389 × 10⁻³
Displacement @60Hz Max 0.011
Presión final 230.00
Power Total Rated @50Hz 11000.00
Power Total Rated @60Hz 15000.00
Noise / Sound Level 84.90 db(A) 84.90 db(A)

DZS 150AP Dry Claw Vacuum Pump, 11 kW (@50 Hz) IEC, 2.3 mbar(a), Air Cooling

3002615225

0 En stock

Haga clic para ver la disponibilidad

Variante

Explore la gama de variantes que se indican a continuación para comparar el producto

Short Description Numero de parte
DZS 150AP 200/230V 50Hz 3Ph
3002615222
DZS 150AP 400V 50Hz 3Ph
3002615223
DZS 150AP 380V 60Hz 3Ph
3002615224
DZS 150AP 575V 60Hz 3Ph
3002615225
DZS 150AP 230/460V 60Hz 3Ph
3002615227
DZS 150AP 460V 60Hz 3Ph
3002615228
Detalles del producto

Dry Claw Pumps

Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.

DZS

The Atlas Copco single stage dry claw pumps provide the state-of-the-art pumping speed and ultimate pressure, and with strong process resistance , by coated pumping components.

DZS 150AP

single stage dry claw air compressor, able to provide compressed air up to 2.3 bar(g)

Features and Benefits

  • The new generation of fixed speed mono claws is packed with innovative features that increases its performance, generates low noise levels, enhanced reliability and easy on-site maintenance. With its innovative core element with stainless steel claw rotors and its process wetted parts protected by a durable coating. The simplicity, robustness, efficiency, and contaminant handling capability of these pumps make the DZS-series of mono claw vacuum pumps the smart choice for your application.

Características del producto

General Product Information

Longitud de cota 1.09
Dimensión de altura 0.671
Dimensión de anchura 0.401
Brida de entrada de conexión 1/4" BSPP (or G 1/4") Female
Noise / Sound Level 84.90 db(A)
84.90 db(A)
Power Supply Frequency 50 Hz
Fase de suministro eléctrico 3-Ph
Método de refrigeración Refrigeración por aire
Connection vacuum outlet flange 1/4" BSPP (or G 1/4") Male
Refrigeración de la conexión 1/4" BSPP (G) Hembra
Clasificación IP IP54
Conexión Brida de Entrada / Salida 1/4" BSPP (or G 1/4") Female / 1/4" BSPP (or G 1/4") Male

Lubricants

Tipo de aceite predeterminado Fluido de Vacío Supreme

Operation Conditions - Limitations

Pressure Absolute Inlet Continous Max 1.050 × 10⁵
Altitud máxima 1000.00
Temperatura máx. del gas de entrada 40.00
Capacidad de aceite máx. 7.000 × 10⁻⁴
Pressure Absolute Outlet Continous Max 1.213 × 10⁵

Performance Data

Presión final 230.00
Velocidad de rotación nominal 50.00
Power Total Rated 11000.00
Power Total Rated @50Hz 11000.00
Power Total Rated @60Hz 15000.00
Displacement @50Hz Max 8.389 × 10⁻³
Displacement @60Hz Max 0.011

Environmental Conditions

Temperatura ambiente de funcionamiento máx. 40.00
Temperature Ambient Operation Min 0.000
Temperatura ambiente de almacenamiento mín. 0.000
Temperatura ambiente de almacenamiento máx. 40.00

Classification

Clasificación Bomba de vacío alto/medio/bajo Rough Vacuum Pump
Clasificación Bomba seca o húmeda Dry
Clasificación Tecnología de bombas de vacío Dry Claw Pump
Clasificación Rango de presión del producto Rough Vacuum: 1000 mbar - 1 mbar

Variants

Homologación eléctrica IEC
