Especificaciones
| Displacement @50Hz Max | 0.139 |
| Presión final | 20000.00 |
| Power Total Rated @50Hz | 9200.00 |
| Noise / Sound Level | 76.00 db(A) |

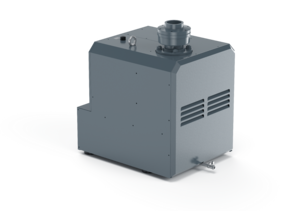

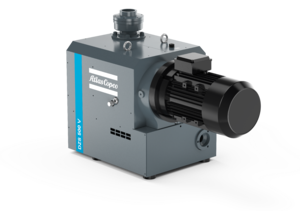

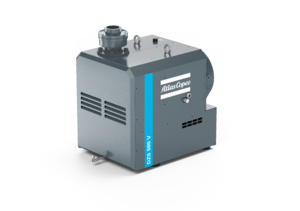

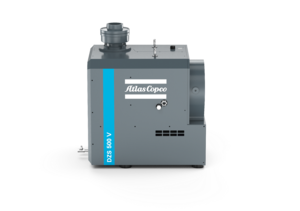

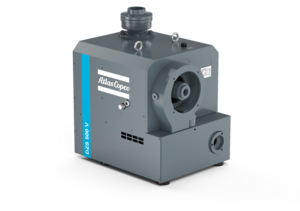

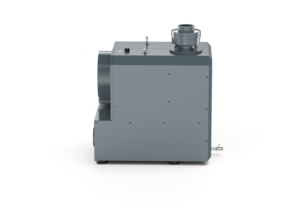

DZS 500V Dry Claw Vacuum Pump, 9.2 kW (@50 Hz) IEC, 200 mbar(a), Air Cooling
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 1905199900 | |
| 1905199901 | |
| 1905199906 | |
| 1905199907 | |
| 1905199913 |
Dry Claw Pumps
Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.
DZS
The Atlas Copco single stage dry claw pumps provide the state-of-the-art pumping speed and ultimate pressure, and with strong process resistance , by coated pumping components.
DZS 500V
single stage dry claw vacuum pump, ultimate pressure down to 200 mbar(a)
Features and Benefits
- Extended pumping speed up to 500 m3/h, rotor and stator coated by PEEK, state of the art noise level achieved by integrated silencer and optimized outlet design
General Product Information
| Longitud de cota | 1.25 |
| Dimensión de altura | 0.845 |
| Dimensión de anchura | 0.586 |
| Brida de entrada de conexión | 3" BSPP (G) Hembra |
| Noise / Sound Level | 76.00 db(A) |
| Power Supply Frequency | 50 Hz |
| Peso | 397.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange | 2 1/2" BBSPP (G) Hembra |
| Power Supply Voltage | 3Ph 380-400V 50Hz |
Performance Data
| Pressure Backing Max | 1.200 × 10⁵ |
| Presión final | 20000.00 |
| Velocidad de rotación nominal | 50.00 |
| Power Total Rated @50Hz | 9200.00 |
| Displacement @50Hz Max | 0.139 |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Rough Vacuum Pump |
| Clasificación Bomba seca o húmeda | Bomba seca |
| Clasificación Tecnología de bombas de vacío | Dry Claw Pump |
| Clasificación Rango de presión del producto | Rough Vacuum: 1000 mbar - 1 mbar |
Variants
| Homologación eléctrica | IEC |
Lubricants
| Tipo de aceite predeterminado | LEYBONOL LVO 150 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitud máxima | 1000.00 |
| Temperatura máx. del gas de entrada | 40.00 |
| Capacidad de aceite máx. | 1.800 × 10⁻³ |
| Pressure Absolute Outlet Continous Max | 1.200 × 10⁵ |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperatura ambiente de almacenamiento mín. | -10.00 |
| Temperatura ambiente de almacenamiento máx. | 60.00 |
