Especificaciones
| Displacement @50Hz Max | 0.569 |
| Displacement @60Hz Max | 0.683 |
| Power Total Rated @50Hz | 7500.00 |
| Noise / Sound Level | 80.00 db(A) |

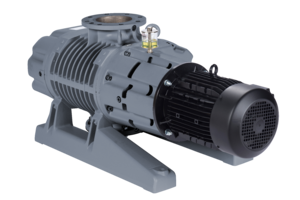

DRB 2000 Mechanical Booster Pump, 7.5 kW (@50 Hz), 50 mbar(dp), Air Cooling
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 8153316990 | |
| 8153317006 |
Mechanical Booster pumps
DRB 250-2000
Based on the simple Roots principle, our mechanical booster pumps remain the favorite pumps for applications where high pumping speeds are required for pressures in the region of 0.01 to 50 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure. Operating at relatively low pressures, the mechanical booster pump is not exposed to the same concentrations of corrosive process media as is the backing pump, which makes it highly reliable.
Features you can rely on:
Pumping speed DRB: 250-2000 mbar(a)
Ultimate pressure: 0.01 mbara
• Available with multiple motor drives and use air- cooled, flange-mounted, standard three-phase motor
• Can be used either vertically or horizontally with the option to change the position when required
• Complies with the premium energy efficiency class IE3. This means lower power consumption and carbon emissions
General Product Information
| Longitud de cota | 1.28 |
| Dimensión de altura | 0.530 |
| Dimensión de anchura | 0.638 |
| Brida de entrada de conexión | DN 160 ISO-K |
| Noise / Sound Level | 80.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Peso | 452.00 |
| Fase de suministro eléctrico | 3-Ph |
| Método de refrigeración | Refrigeración por aire |
| Connection vacuum outlet flange | DN 160 ISO-K |
| Power Supply Voltage | 3F 200-240V, 380-415V/200-220V, 380-460V 50/60Hz |
Lubricants
| Tipo de aceite predeterminado | VG 100 |
Performance Data
| Velocidad de rotación nominal | 50.00 |
| Power Total Rated | 7500.00 |
| Power Total Rated @50Hz | 7500.00 |
| Pressure Differential Max @50Hz | 5000.00 |
| Pressure Differential Max @60Hz | 5000.00 |
| Displacement @50Hz Max | 0.569 |
| Displacement @60Hz Max | 0.683 |
Classification
| Clasificación Bomba de vacío alto/medio/bajo | Bomba de vacío medio |
| Clasificación Bomba seca o húmeda | Bomba seca |
| Clasificación Tecnología de bombas de vacío | Mechanical Booster Pump |
| Clasificación Rango de presión del producto | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
Operation Conditions - Limitations
| Altitud máxima | 1000.00 |
| Temperatura máx. del gas de entrada | 40.00 |
| Capacidad de aceite máx. | 5.800 × 10⁻³ |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
| Temperatura ambiente de almacenamiento mín. | -20.00 |
| Temperatura ambiente de almacenamiento máx. | 60.00 |
