GHS 1402 VSD+ Oil Injected Screw Vacuum Pump, 22 kW (@50 Hz), 0.35 mbar(a), Air Cooling, Front Panel Humid Version

Oil Injected Screw Pumps

Oil injected screw vacuum pumps are positive displacement pumps which use two intermeshing rotors with helical screws to compress gas. They use oil as a sealing and cooling medium. They are commonly used in industrial applications for their high pumping speed, low ultimate pressure, and reliable performance

GHS VSD+

The Atlas Copco GHS pumps based on oil injected screw technology which is the proven one of the most reliable one on the makert, and featured by variable speed driven motor where power saving happened. The GHS is controlled by integrated controller, pre-programmed with several intelligent function, such as pressrure set point, real-time monitoring on inlet pressure and outlet temperautre , ect. It is also designed in plug-and-play concept, delivery the most suitable level of vacuum, without any waste.

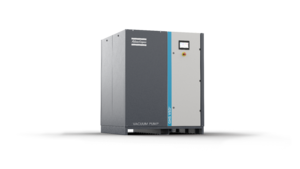

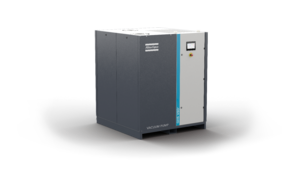

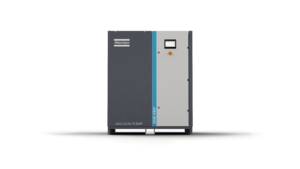

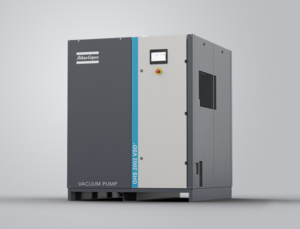

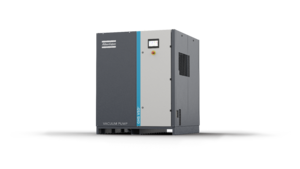

GHS 1402 VSD+

The GHS 1402 VSD+ is a single stage oil injected screw pump but with latest technology which able to provide higher pumping speed above 400 mbar(g), driven by an IE5 variable speed motor, and controlled by C4.0 controller where pressure set point available to be achieved.

Features and Benefits

• GHS VSD+ driven by a variable speed motor and controlled by the logic that always as close to the customer pressure set point as possible, so there will be no waste of energy in terms of working in too deep vacuum level where customers do not need it. . The C4.0 controller also make the pumps more intelligent by by the means of more customized option can be implemented and remote monitoring / control / communication available. The blow-off valve brings the high and constant pumping speed above 400 mbar(g), make the GHS VSD+ widen its target market where need higher pumping speed.
